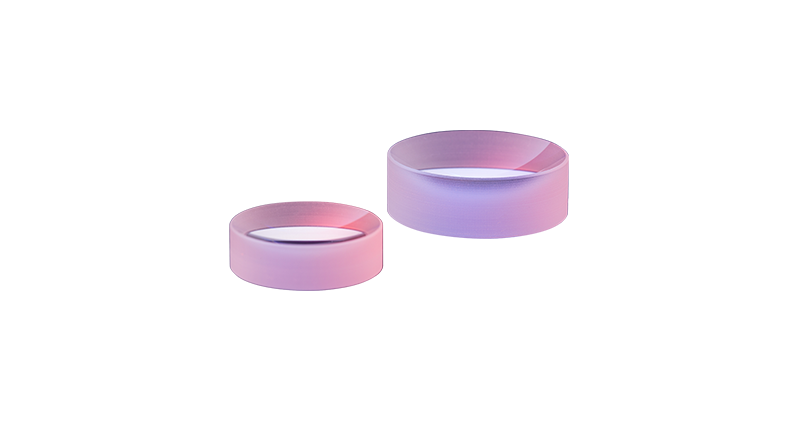

Product description
Uv fused quartz flat concave lens series, respectively coated, coated laser A film (450-800nm multi-layer anti-reflection) and laser B film (800-1100nm multi-layer anti-reflection) broadband anti-reflection, coating can reach a high damage threshold (> 7.5J/cm2), can be suitable for most imaging applications, Moreover, fused quartz glass has better uniformity and lower thermal expansion coefficient than H-K9L glass, and has superior imaging and damage resistance characteristics in the ultraviolet to near-infrared region. The plano-concave lens has a diameter of Φ12.7mm and can be held by the GMM-08 series standard frame, suitable for a variety of applications in small space conditions.

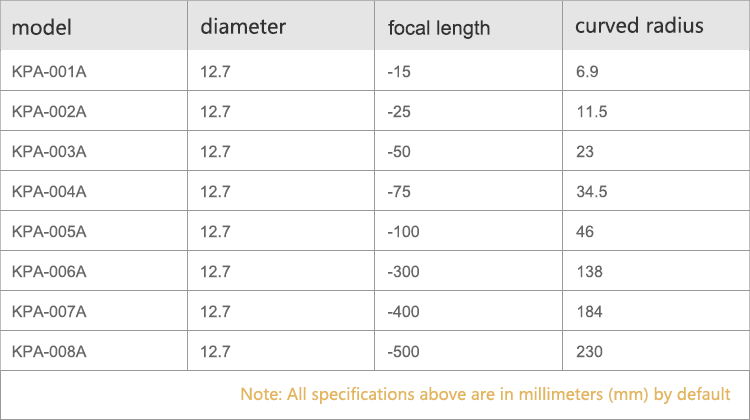

KPA-001A Φ12.7 laser quartz plano-concave lens 450-800nm
Uv fused quartz flat concave lens series, coated with laser A film (450-800nm) broadband multi-layer anti-reflection film, coating can reach a higher damage threshold (> 7.5J/cm2), can be suitable for most imaging applications, and fused quartz glass than H-K9L glass has better uniformity and lower coefficient of thermal expansion. It has superior imaging and anti-damage properties in the ultraviolet to near-infrared region. The plano-concave lens has a diameter of Φ12.7mm and can be clamped with the GMM-08 series standard frame, which is suitable for various applications in small space conditions.
• Material: UV fused quartz
• Coating: Rave < 0.5%@450-800nm
• Damage threshold: ≥7.5J/cm2 (pulse 10ns 10Hz 532nm)
