Plano-convex lenses usually collect and concentrate light in imaging applications. The front and back surfaces of the plano-convex lens are asymmetrical, so the spherical aberration can be effectively reduced, especially in the application occasions where the distance between the object and the image is unequal. The best application is to place the object at infinity (that is, as parallel light incidence) and image it at the focal plane. At this time, the conjugate ratio of object to image (i.e. object distance/image distance) is infinite. The convex surface of the lens should be placed in the object direction. H-K9 plano-convex lenses of various specifications from stock, and can provide Zemax data of a full range of products.There are five types of coating on H-K9 plano-convex lens, namely, single-layer MgF2 coating, uncoated coating, multilayer anti-reflection A coating of 350-750nm, multilayer anti-reflection B coating of 700-1100nm and multilayer anti-reflection C coating of 1050-1700nm.
This series of plano-convex lenses are uncoated lenses, and the transmission wavelength range is 350 nm-2.0 μ m.
Material: H-K9 (of which GCL-010130 and GCL-010172 are made of H-ZF13).
Coated: uncoated

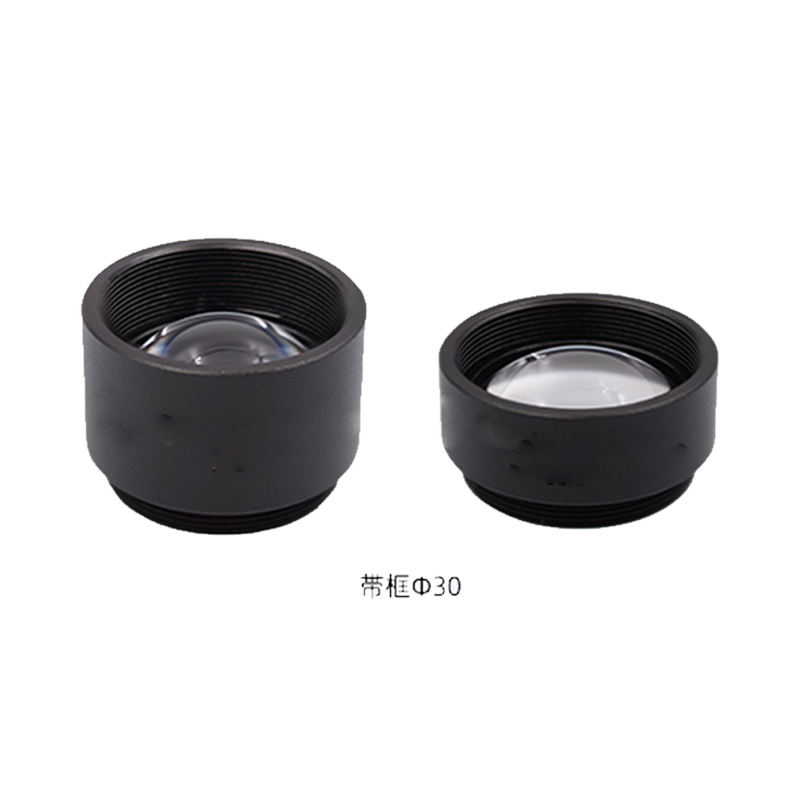

These plano-convex lenses are made of H-K9L glass and have no coating on their surfaces. The lens is pre-installed in the frame with external thread of 1.035 "-40 (SM1) with external diameter of 30mm, which can be compatible with SM1 threaded frame or 30 mm coaxial lens barrel series. The lens frame is marked with the lens type, focal length and coating range of antireflection film.Plano-convex lens is usually used to focus collimated light or collimate light from point light source. Because of the asymmetry of front and rear surfaces, spherical aberration can be effectively reduced, especially in applications where the distance between objects and images is unequal. In order to minimize the introduction of spherical aberration, the collimated light source should be incident on the curved surface of the lens when focusing and on the plane when collimating. The specific optical parameters of the lens can be viewed according to the lens model provided in the table below.Lens coating: uncoatedMounting thread: 1.035 "-40 (SM1)Optical aperture: φ23
