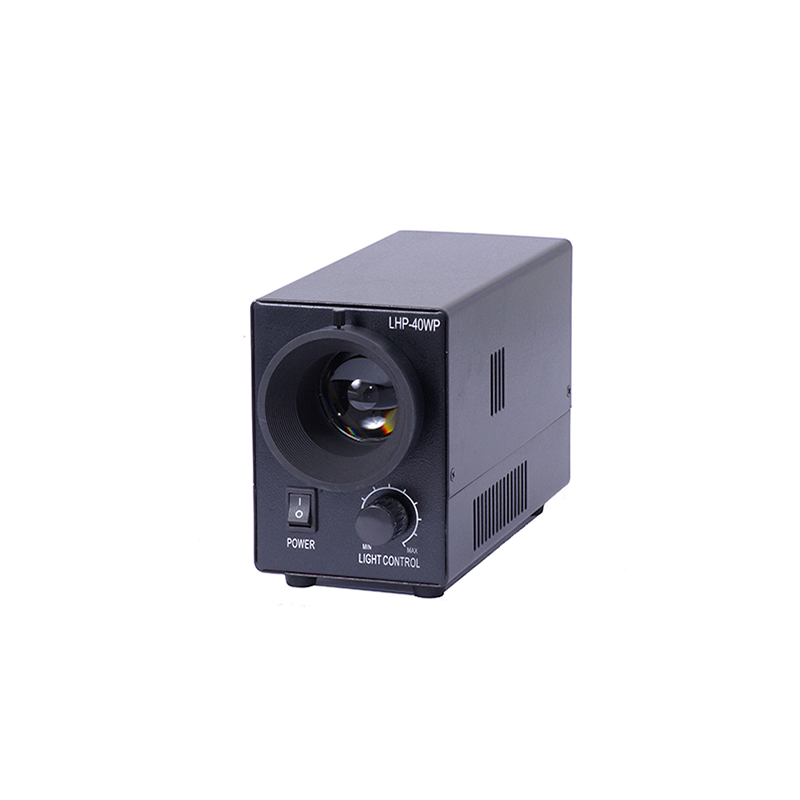

Product features:
This series of products are mainly used in optical processing, optical coating industry of various lenses inspection, with energy saving, small size, continuous dimming and other characteristics, more importantly, this product uses the world's advanced imported LED, its life up to 20,000 hours, greatly reducing the user's cost.
Technical indicators:
| Model number | LED-400WA（3000k） | LED-400WB（4500k） | LED-6500C |
| Input voltage | 100-240VAC.50/60HZ | 180-240VAC,50HZ | |
| Luminous flux | 2500Lm（MAX) | 1000 Lm（MAX） | |
| Illuminance stability | —— | Output voltage change < 0.1%, illuminance change <0.8% | |
| Brightness control | 0-100% | —— | |
| Spectral characteristic | Temperature4500K(LED-400WB) Temperature3000K(LED-400WA) | Temperature6500K | |
| Irradiated area | Diameter 50mm circular plane | —— | |
| Brightness control | —— | Output current 0-4.8A | |
| Lighting mode | Constant current lighting | Dc lighting | |
| Ripple voltage | —— | ≤60Mv | |
| Light source lifetime | 20000Hours | 30000 Hours | |
| Power consumption | 50WMAX | —— | |
| Working environment | —— | -10℃-40℃；30%-90%RH | |
| Product size | LXWXH=205X115X130mm | LxWXH=360x160x220mm | |
