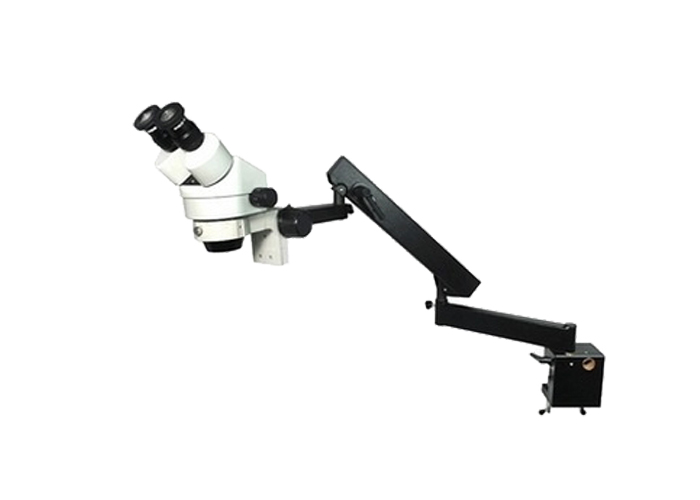

Zoom Stereo Microscope - TS-30Y /TS-30YS
Specifications
Max. Optic Magnification: 2.1X-270X
Zoom Range of Zoom Body: 0.7X-4.5X; Zoom Ratio: 1 6.4
Optional Eyepieces: 10X, 15X, 20X 25X and 30X;
Optional Auxiliary Lenses: 0.5X, 1.5X and 2X
33 www.pdvcn.com
Beijing PDV Instrument Co., Ltd
Working Distance: 30mm-165mm
Adjustable Interpupillary Distance: 54mm-75mm
Eyepiece Diopter Correction: ±5 Diopter
Eyetube Inclination: 45°
Optional Video Couplers: 0.3X, 0.5X (For Trinocular Body)
Flexible Arm: Horizontal Arm Length: 330mm; Mounting Hole on the End of Horizontal Arm: 16mm; Base Dimensions:
104x77x136mm; Opening of clamp: 0~53mm
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.
Have the industry leading level of the designer, can strictly grasp the product design and processing precision.
We have experienced and skilled assembly master.
Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.
If our standard products do not meet your requirements, we can customize them according to your requirements.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
