Specification:

Product parameters:

Model number	SD-XY10
Table size	320×320mm
Driving mode	Ball screw
Drive position	Central drive
journey	±10mm
Guide form	Linear guide
bear	30kg
straightness	7μm
Mesa parallelism	10 μm
Parallelism of motion	10 μm
Be self-possessed	15.1 kg
Materials	duralumin
Surface treatment	Hard oxide black

Product details:

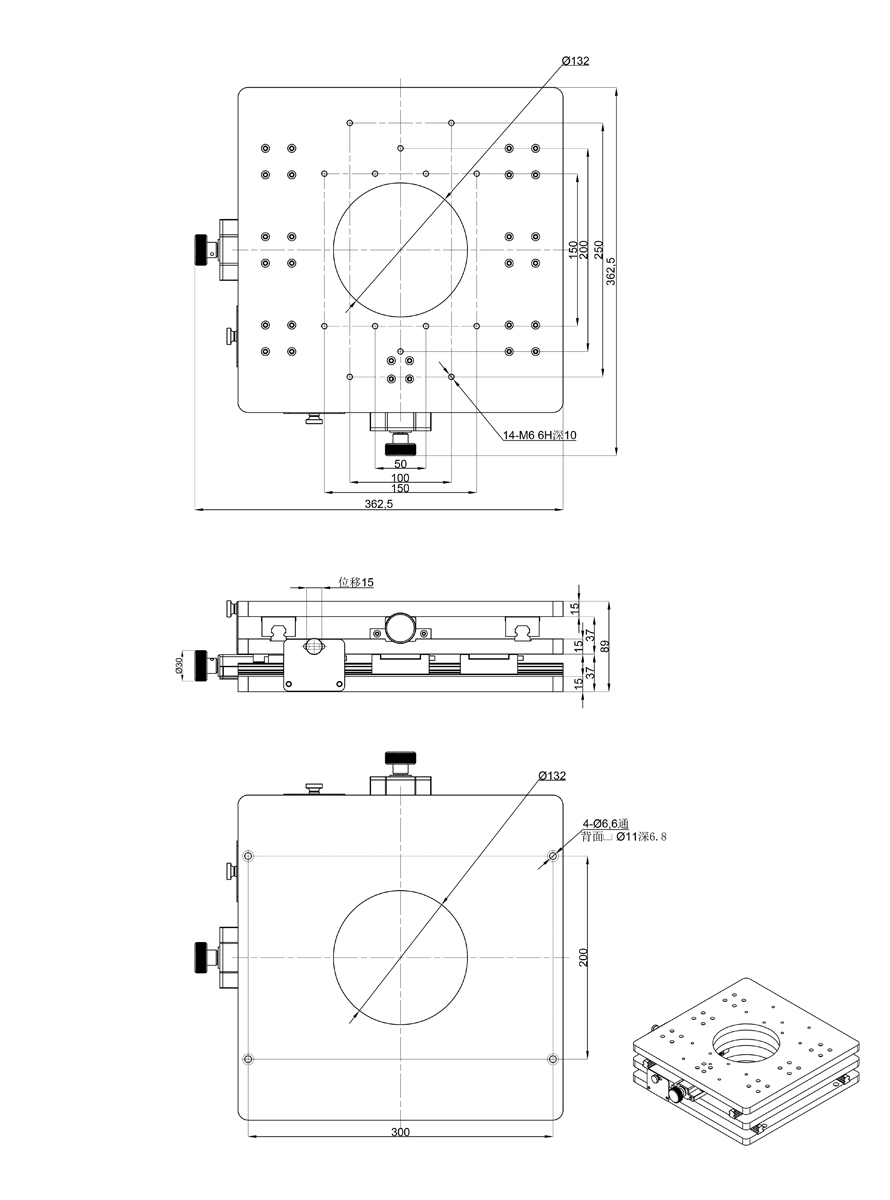

Product size:

SD-XY10 Manual XY hollow displacement table translation table stroke ±10mm carrying 30kg

Service:

SD-XY10 Manual XY hollow displacement table translation table stroke ±10mm carrying 30kg

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
